A radial tire combines road-contact rubber, reinforcing cords and an air-retaining inner layer. Understanding those jobs makes it easier to explain what a customer is buying.
Start with the cutaway below. Open a component to see its position and read its role. This is a generic passenger-tire illustration: layers are enlarged for clarity, and the drawing is not the specification of a tire we sell.
Static cutaway. Component explanations are available below.
Explore the radial tire
Drag left or right to rotate. Select a surface or component to learn its role.
Drag to rotate · Arrow keys turn · Home resets. Educational schematic: layers enlarged, wheel and some reinforcement details omitted. Not a product specification.

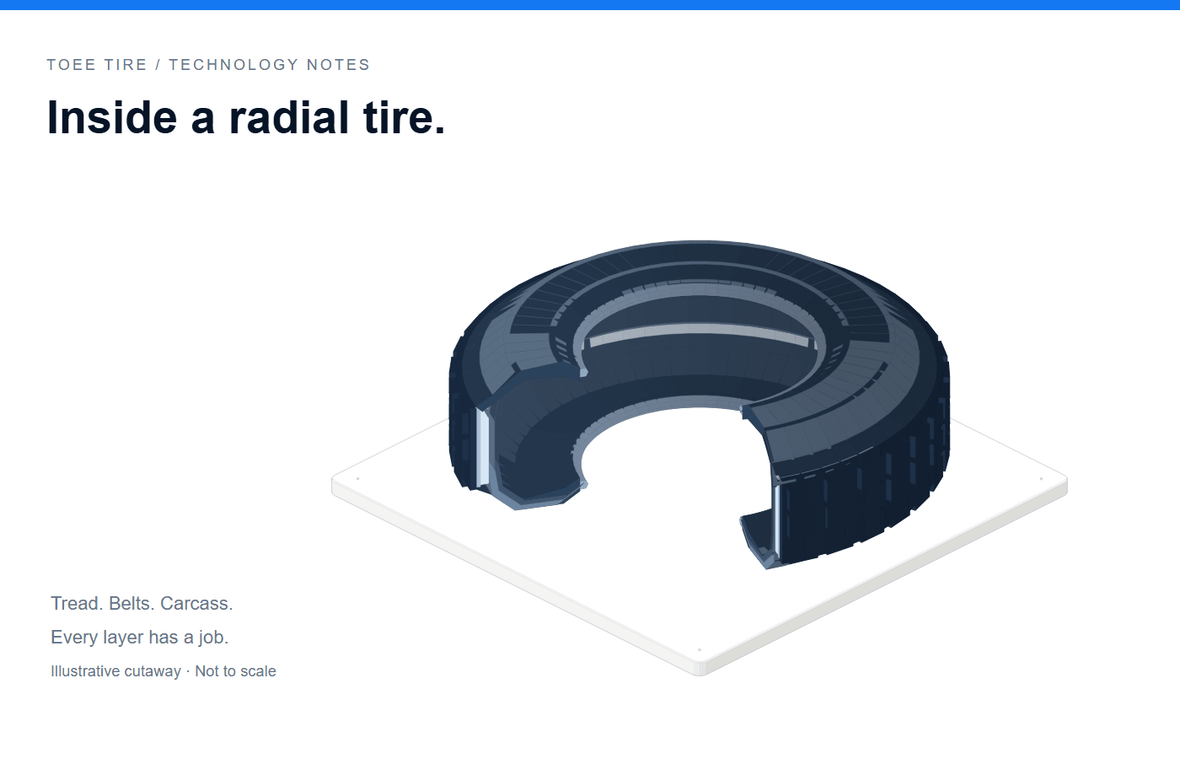

A quarter of the specimen is removed to expose the structure. The central opening is where the wheel sits. Schematic, not to scale.
01TreadThe road-facing surface
The tread is the rubber surface that meets the road. Its compound and pattern help determine how the tire grips and wears. Grooves and small cuts in the pattern have different jobs; appearance alone cannot tell you the performance of a particular tire.
02Cap ply and steel beltsReinforcement beneath the crown
Steel-cord belts reinforce the crown beneath the tread. A cap ply, where used, wraps around the circumference above the belts to help control growth at speed. These are separate components with different cord directions. Their materials and arrangement depend on the tire design.
03Carcass plyThe continuous structural framework
The carcass runs from one bead to the other through both sidewalls and under the crown. In radial construction its cords run approximately at right angles to the circumferential bead direction. This is the structure beneath the visible rubber, not another tread pattern.
04Inner linerThe air-retaining layer
The inner liner follows the inside of a tubeless tire. Its low-permeability rubber helps retain inflation air. In the cutaway it is the innermost skin; it is not an extra loose tube fitted inside the tire.
05SidewallProtection around the casing
The sidewall is the exterior rubber between shoulder and bead. It protects the underlying casing and carries the tire size and other markings. The visible sidewall and the hidden carcass are related, but they are not the same component.
06Bead bundlesThe connection to the wheel
Steel-wire bead bundles form the reinforced edges at the wheel opening. The casing turns around these bundles. The finished bead region helps keep the tire seated against the rim; this drawing omits the smaller reinforcement and rubber details around it.
The component descriptions follow Continental’s tire-components guide, Michelin’s construction overview and the Tire Industry Association’s manufacturing explanation.
What “radial” tells you
“Radial” describes the arrangement of the casing cords. It does not describe the direction of the grooves you can see on the road-facing surface. A customer comparing two tread patterns is looking at a different design choice from the internal cord layout.
During manufacture, the casing is built around the bead bundles, the crown components are added, and heat and pressure cure the assembled rubber into a finished tire. The separated colours in our illustration help identify parts; in service, those parts are bonded together. See the TIA manufacturing sequence.
Use the diagram to explain, then check the specification
A shared construction principle does not make two tires interchangeable. This illustration cannot tell a reader which model fits a vehicle, which seasonal category to choose, or how one model performs against another. Those decisions require the actual product and vehicle information.
At the counter, keep the conversation specific. Ask which vehicle the customer is fitting, which size and service description are required, and what use they are buying for. Then use the current product information to explain the options. Avoid turning an attractive tread pattern, an exposed steel belt, or the number of illustrated layers into a performance ranking.
The benefit of a cutaway is vocabulary. Once a customer can distinguish tread from sidewall and belt from carcass, a discussion about a particular product becomes easier to follow. The next step is to connect that vocabulary to the markings on the tire in front of them.
A short explanation for the service counter
The tread meets the road. Belts reinforce the crown beneath it. The carcass connects the structure from bead to bead, the inner liner helps retain air, and the sidewall protects the casing. Each part has a job, and the finished tire brings them together.
For the next conversation, use our guide to reading tire sidewall numbers and markings. Compare the diagram with a real sidewall, then check the relevant product information before making a recommendation.
About this illustration
Original Toee educational artwork built with Anatomy. Generic geometry; exaggerated layer thicknesses; smaller bead-region details omitted. Highlighting identifies a component and does not simulate its movement or performance. Technical sources reviewed October 22, 2026.
